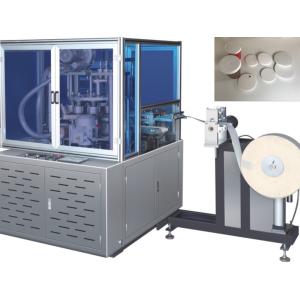

220V 350gsm 100pcs/Min Paper Lid Forming Machine

    Buy cheap 220V 350gsm 100pcs/Min Paper Lid Forming Machine from wholesalers

    Buy cheap 220V 350gsm 100pcs/Min Paper Lid Forming Machine from wholesalers
    • Buy cheap 220V 350gsm 100pcs/Min Paper Lid Forming Machine from wholesalers

    220V 350gsm 100pcs/Min Paper Lid Forming Machine

    Ask Lasest Price
    Brand Name : MINGYUAN
    Model Number : MYZG-100
    Certification : CE/ SGS
    Price : negotiation
    Payment Terms : T/T, LC or western Union
    Supply Ability : 50 sets per month
    Delivery Time : 35-40working days after received your payment
    • Product Details
    • Company Profile

    220V 350gsm 100pcs/Min Paper Lid Forming Machine

    High speed full automatic Double PE coated coffee paper lid forming machine speed 70-100pcs/min

    MYZG-100 Paper lid machine is our new design equipment to meet the high demand of paper lid and paper cover ,makes covers are widely used for ice cream cup, soup cup , coffee cup etc . according to customers’ demand, and the machine with automatic stacking,


    It is an automatic machine with multi-functions : Automatic roll paper feeding ,creasing (make the forming guide line ), emboss (can make emboss, logo) ,cross cut (make hole for straw), Punching (punch the roll paper to lid open disc), auto feed disc to mould ,heating ,folding ,knurling and discharge ,with convey and counter for the collection unit .only one worker can operate this kind machine, save cost and time.


    Technical Specification:


    Suitable paperDouble side PE Coated Paper
    Paper weight250-350 gsm
    Lid forming size

    Lid height: 8-15mm

    Diameter 60-100mm(cup lid) / Diameter 100-140mm (bowl lid)

    Forming speed70-100pcs/min
    Air pressure0.4MPa
    Air consumption0.3m3/min
    Total power10 KW
    Power supplyAC 380V, 50Hz, three-phase, or other requirements
    Machine dimensionL2600*W1500*H1800MM
    Machine weight2500 KG


    Main features


    1. The paper lid machine is controlled by PLC, all data show on touch screen, all process time set by coder.


    2. The Knurling is similar to cup forming process, heating, folding , knurling and forming.


    3. hot air system guarantee the stability of heating.


    4. Many photoelectric sensors are used in machine, so it is easy to find faults if happens, and it can auto stop and give alarm when meet problems. In this way, all machine part will not knock against one another, it will improve machine life circle .


    5. Automatically Oil lubrication system inside for lubricating machine moving parts, make them longer service life, not easily get broken .


    6.. The machine is adopted with high precision big cam structures and running smooth ,low noise. Machine runs at very less noise and lid forming very stable.


    Advantages:


    1.Touch Screen Controller: It adopts PLC controller and touch screen (man -machine interface), all the working parameters can be setup on the control panel which is convenient for parameter setting and adjusting.



    2.The roll paper feeding is controlled by the servo motor, which makes the paper feeding more accurate and more reliable, and reduce the waste of the paper.



    3.Machine with two Sets Hot Air Heating System which provide hot air to guarantee the stability of heating. And ensure Finished lid without any leakage Trouble



    4. Punching Unit (cut roll paper to lid disc)



    Machine workshop
