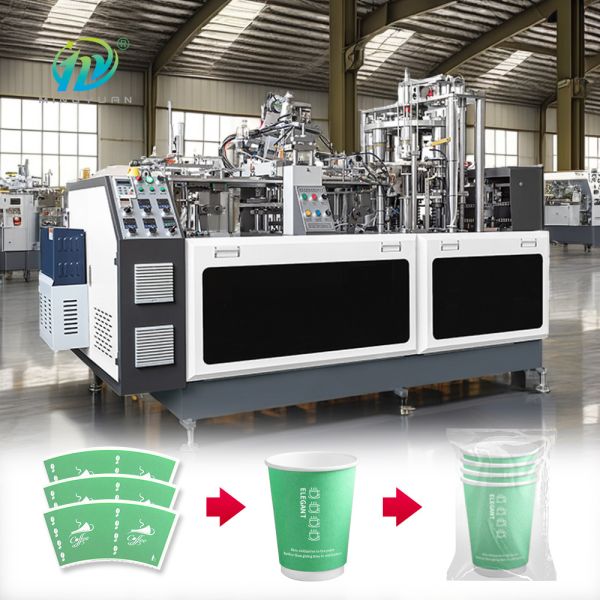

High-Speed Paper Cup Machine Can Provide Overseas Engineer Service Disposable Paper Cup Manufacturing Machine 1.5-16oz High-Speed Cup Machine

If you need a different size paper cup, please contact us!

production description

1.High-speed production capacity: It can produce 100-110 cups per minute, improving production efficiency.

2.Multiple size applicability: Suitable for producing cups ranging from 1.5 to 16 ounces, meeting various size requirements.

3.Wide applicability: Suitable for producing various types of paper cups, including hot drinks, cold drinks, coffee, tea, and ice cream cups.

Model	High Speed Single Plate Open Cam Paper Cup Machine MYC-OCM12
Paper Cup Size	1.5 ~16 OZ (Mould exchangeable, Max Cup Height:135mm , Max Bottom width :70mm
Rated Speed	100-110pcs/min ( Speed affected by cup size, paper quality & thickness), 9OZ, 280GSM paper cup Stable running speed 100-110 pcs each min
Raw Material	One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Suitable paper weight	140-350gsm
Power Source	50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power.requirement
Total Power	6KW
Total Weight	GW/NW: 1800KGS/1700KGS
Pack Size (L*W*H)	2100*970*1700mm(Machine Packing Size), 1250*860*1860MM(Counting Machine Packing Size)
Working Air Source	Air pressure:0.4Mpa/Air Out-put:0.6m³/minute/Need to buy Air Compressor(by user)
Cup Side Welding	Ultrasonic heater
Cup Bottom Heating	1 side PE paper by heater knurling; 2 side PE paper by cool device (circle water) knurling
Cup Bottom Knurling	Heater Knurling (if use single PE coated paper)

1. Easy to operate: most of the equipment is equipped with humanized touch screen and PLC control system, simple and intuitive operation, reducing training time.
2. Strong production flexibility: can adjust the production speed and paper cup specifications according to demand, flexibly respond to different production tasks and market needs.
3. High precision control: The equipment is equipped with precise temperature control, pressure control and speed regulation system to ensure the consistency and high quality of each paper cup.
4. Health and safety: The equipment uses food-grade materials, meets international food safety standards, ensures that the production process does not pollute the product, suitable for the food industry needs.
5. Intelligent fault detection: Modern paper cup machines are usually equipped with intelligent fault diagnosis systems, which can detect and alarm in time to help quickly troubleshoot faults and improve production efficiency.
6. Space saving: Compared with traditional manual production or semi-automatic equipment, the high-speed paper cup machine occupies a relatively small area, which can improve the space utilization of the production line.
7. Continuous technological innovation: Some manufacturers continue to carry out technological innovation to improve equipment performance, such as the use of advanced automation technology, intelligent control systems, etc., to improve production efficiency and product quality.

1.Air flier tank : make the air dryer withour water into solenoid valve,longer service life

2.Vacuum generator : Sucking down paper fan easily , more stable and durable

3.Ultrasonic system : paper fan side sealing

4.bottom paper steel roller : bottom roll feeding , more durable, less wear and tear trouble compared with rubber

5.12 Sensors : detection and send the alarm when machine has any failure

6.Cup bottom heater : preheat cup bottom and seal the cup bottom easily without leakage issues

7.bottom knurling & top curling : bottom knurling sealing ; top curling make the rim stronger and better

8.25MM thickness stainless steel plate: More Durable and heavier , no shaking issue when machine running

9.multifunctional Solenoid valve : Control pneumatic components work more stable and longer service life

Company Profile

FAQ

Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit isfeiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.

          MINGYUAN was established in 2009, is a professional design, development and production of paper cup machine, paper straw machine, paper hamburger box forming machine, paper tray machine, plastic lid machine, paper cake tray machine all kinds of containers and packaging complete set of equipment.

         We are located in "China Packaging Machinery City"--Rui'an City, and all our products meet international quality standards and have obtained CE certificates. Our well-equipped facilities and excellent quality control throughout all stages of production allow us to guarantee complete customer satisfaction.

         Ruian Mingyuan Machinery Co., Ltd. was established in 2009. It is a company that integrates machinery development, production, sales and service for packaging equipment and complete sets of paper containers.

     In order to meet customers' export services from raw materials to finished products, we founded Ruian Mingyuan Paper Products Factory in 2014 and Wenzhou Mingyuan Import & Export Co., Ltd in 2022. We are mainly engaged in the supply of raw materials and finished paper products, foreign trade import and export business.

     Adhering to the corporate tenet of "quality, service and price", the company currently has more than 10 product lines, with products exported to 67 countries. High-efficiency production of high-quality finished products help customers to win the competition of market.

    Refine the performance of the equipment according to customer needs and provide more complete and timely after-sales ervice. Bringing more professional and high performance machines and equipment to customers.

    With the concept of "altruism", we aim to build a "different" company with a "human touch", which will ultimately lead to the common prosperity of our employees and customers.

Office Of Mingyuan Machinery

Employee of Mingyuan Machinery

Factory Building of Mingyuan Machinery

Workshop of Mingyuan Machinery

Machine Ready for Loading
